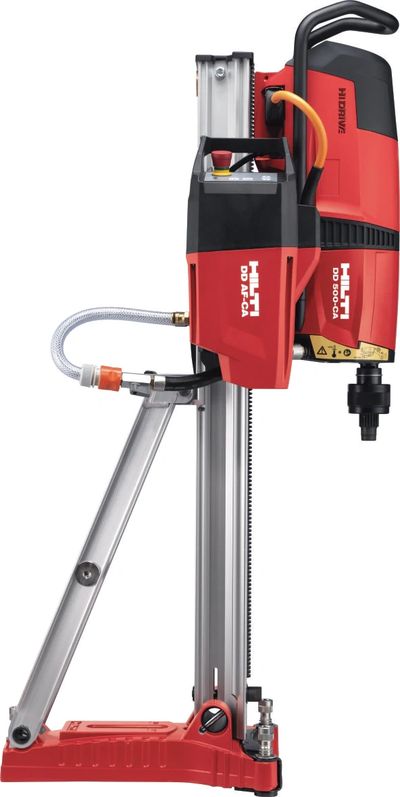

HILTI - dd 500-CA Core drill

3-phase Heavy-duty Diamond Drilling System / Diameters up to 23-5/8"

FEATURES


  • Powerful high-frequency motor with electronic speed control for optimum power delivery over the entire diameter range.
  • Compatible with the DD AF-CA automatic feed unit that makes drilling a highly efficient and fully automated process.
  • Iron Boost: for a quick performance boost with increased torque when drilling through rebar.
  • Thanks to IP 55 water spray protection, drilling can be carried out under adverse conditions.
  • Operation within the optimum power band, for peak performance and longer core bit life, is easy with the aid of the LED power indicators.


APPLICATIONS


  • Drilling through-holes and penetrations.
  • Manhole openings.
  • Deep hole drilling.
  • Stitch coring for installing cable trays.
  • Large openings for water drainage pipes etc.


TECHNICAL DATA


  • Diameter range: 3-7/32 - 23-5/8 in.
  • Base material: Concrete.
  • Operation mode: Rig-based drilling system.
  • Number of gears: 10.
  • Weight according EPTA-Procedure 01/2003: 36.6 lb.
  • Weight of complete system: 82 lb.
  • Dimensions (LxWxH): 23.9 x 7.6 x 8.5 in.
  • A-weighted emission sound pressure level: 100 dB (A) .
  • Tri. vibr. value for drilling into concrete (wet) with diamond core A (ah,DD): 4.5 m/s² .
